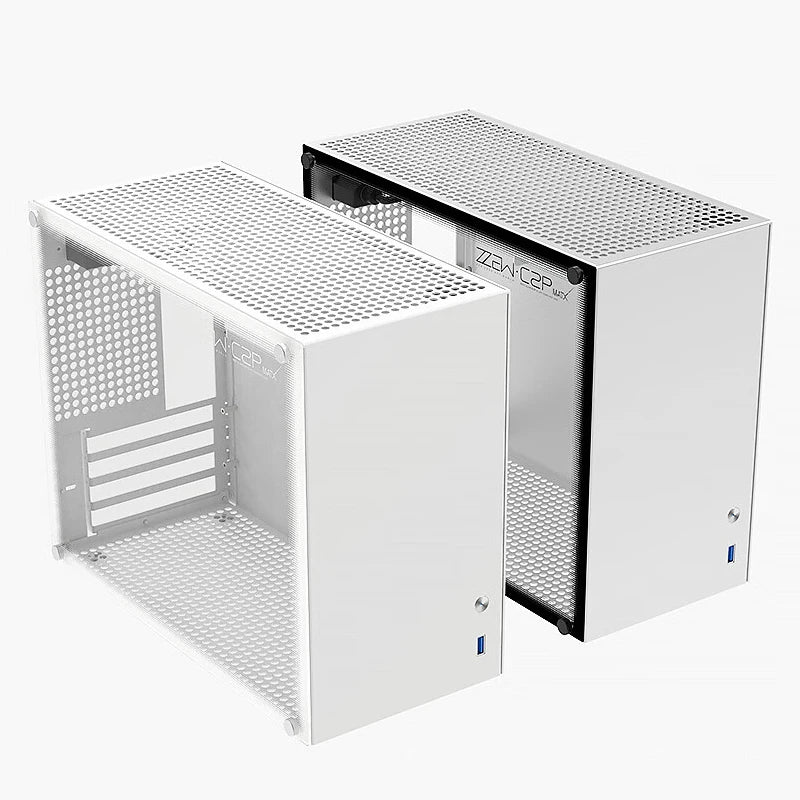

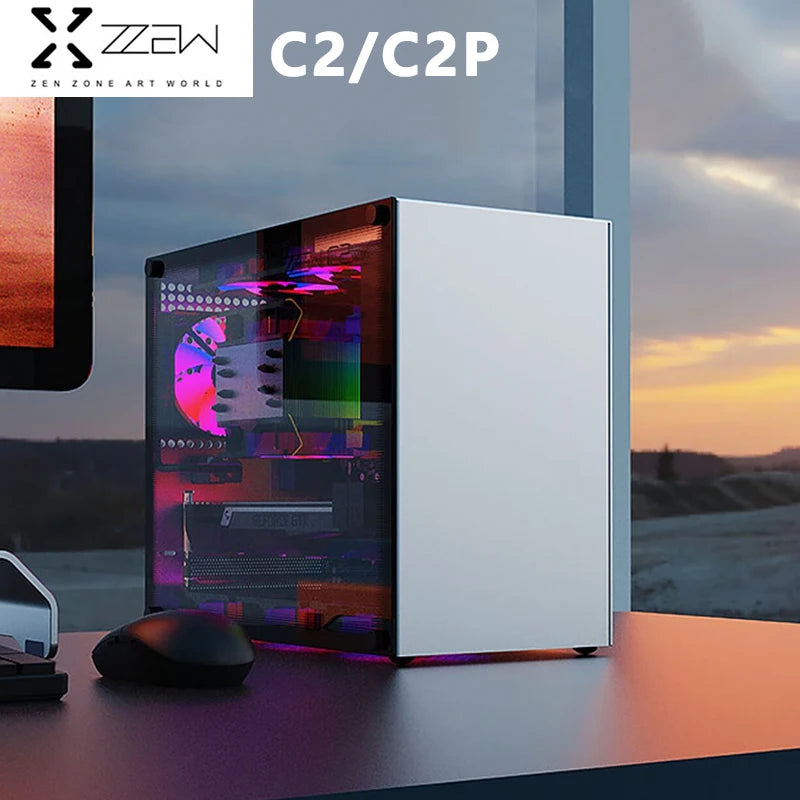

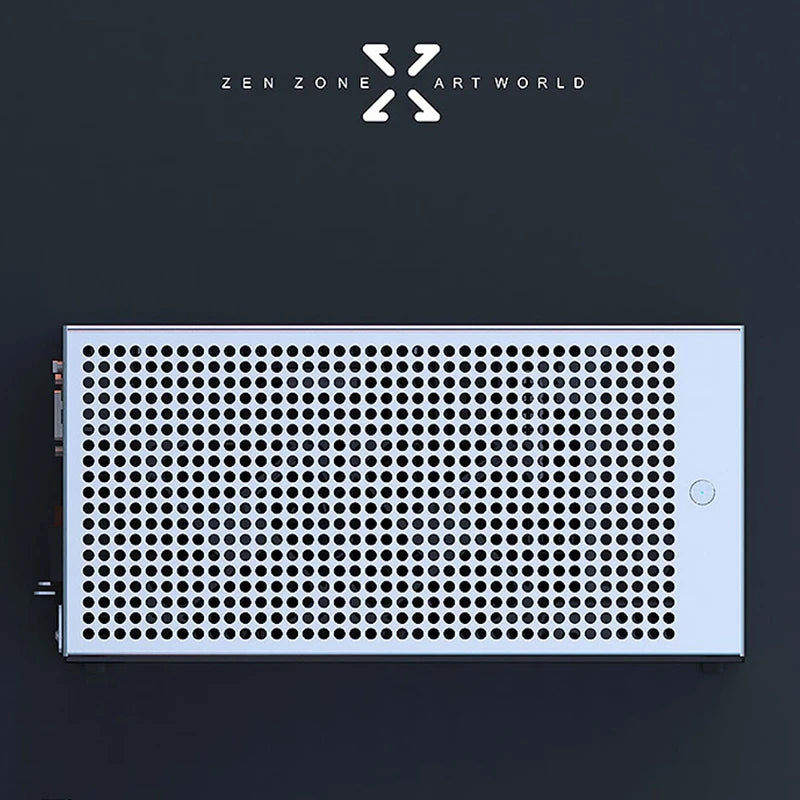

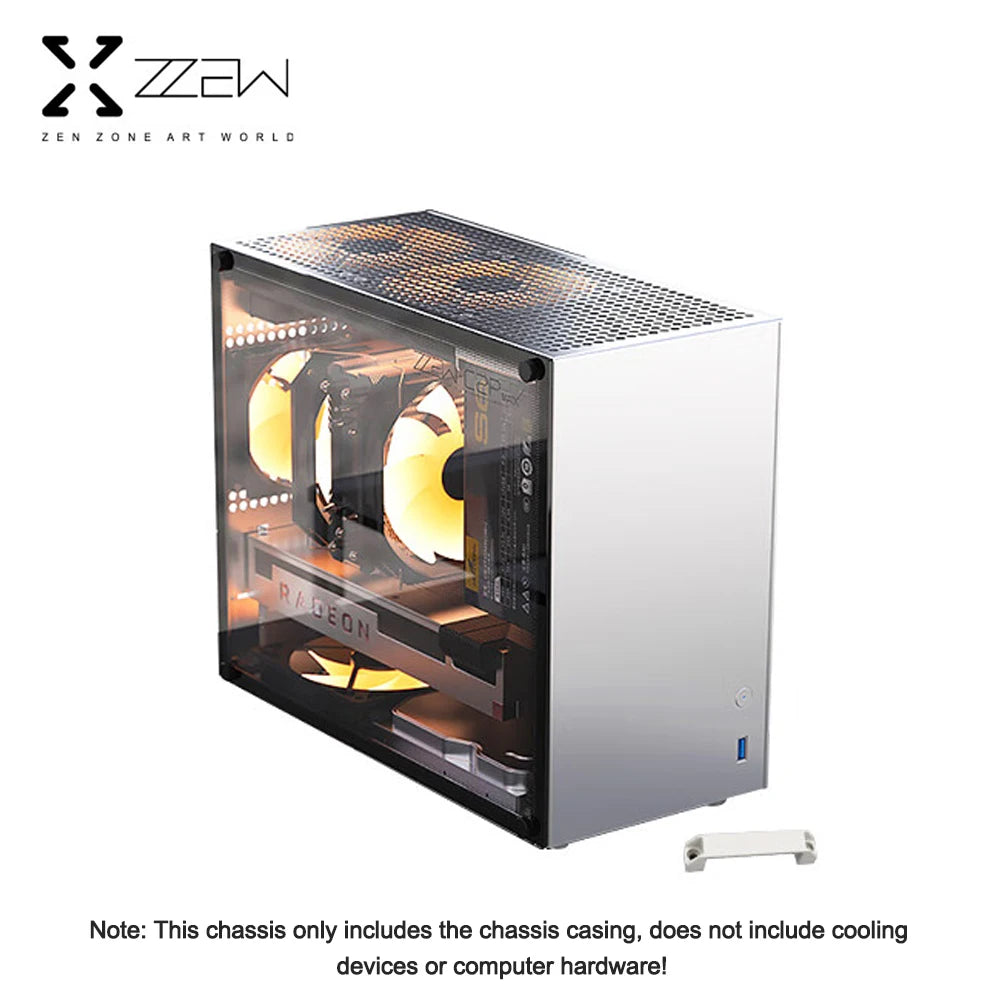

ZZAW C2 C2P M-ATX Computer Case Side Transparent MINI-ITX All Aluminum Desktop Office Small Chassis Supports Long Graphic Card
SPECIFICATIONS
Application: Desktop
Brand Name: zzaw
Model Number: C2/C2P
Max GPU Length: 260
RGB Support: NO RGB
With Side Panel Window: YES
120mm Fan Options: 3
With Fan: no
Material: aluminum
Material: Tempered Glass
Material: others
Series: C2
With Power Supply: no
Power Supply Mounted: Top
Dust Filters: Top
Radiator Size: 240mm
Origin: Mainland China
Max CPU Cooler Height: 136
Type: Mid Tower
Max PSU Length: 140
Case Weight: 2.6
Internal 2.5" Drive Bays: 3
Case Size: 326x262.5x161mm
Form Factor: MicroATX
Form Factor: Mini-ITX
Chassis Type: Desktops
Power Model: ATX
Choice: yes
semi_Choice: yes

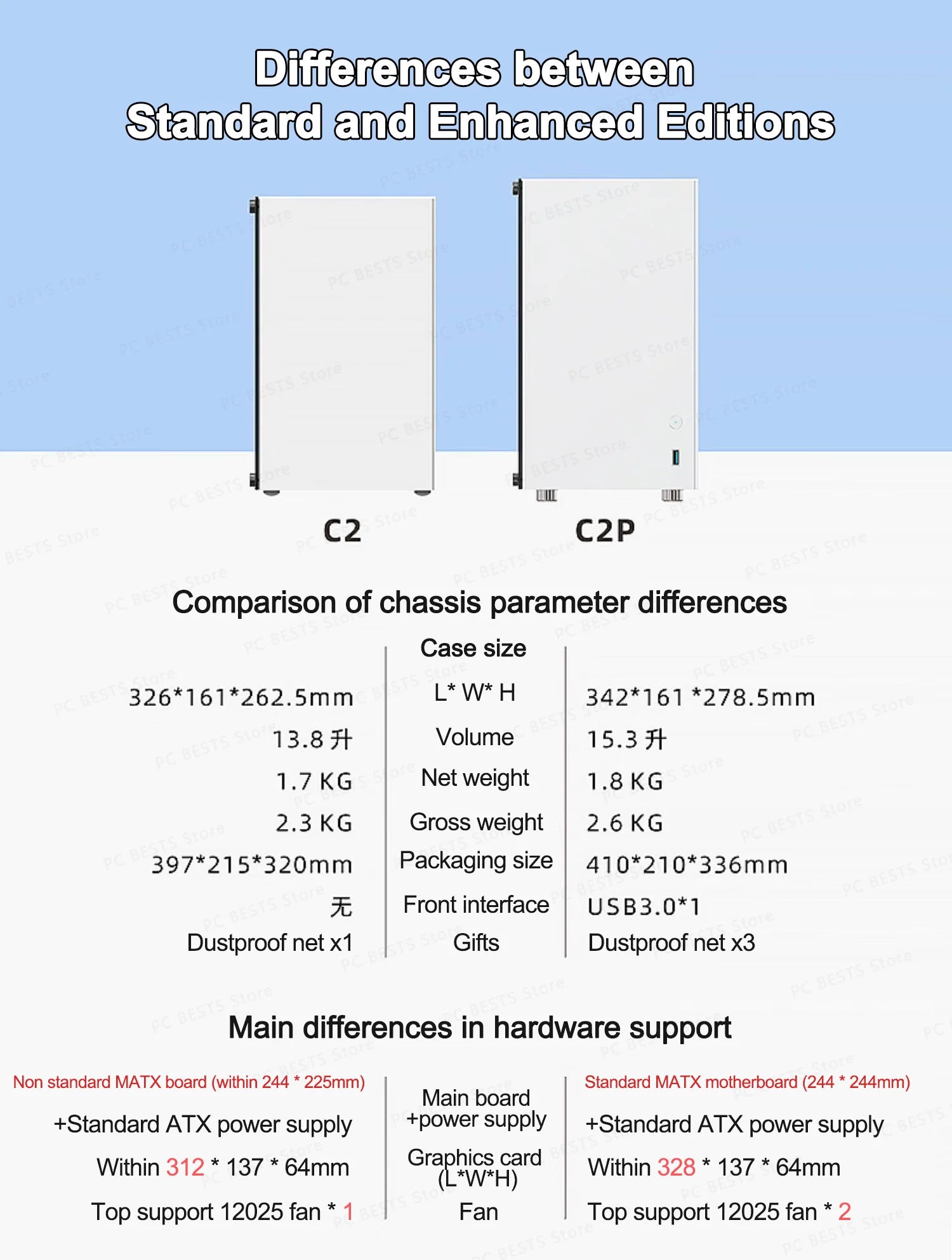

Case Specification Parameters:
Model: C2

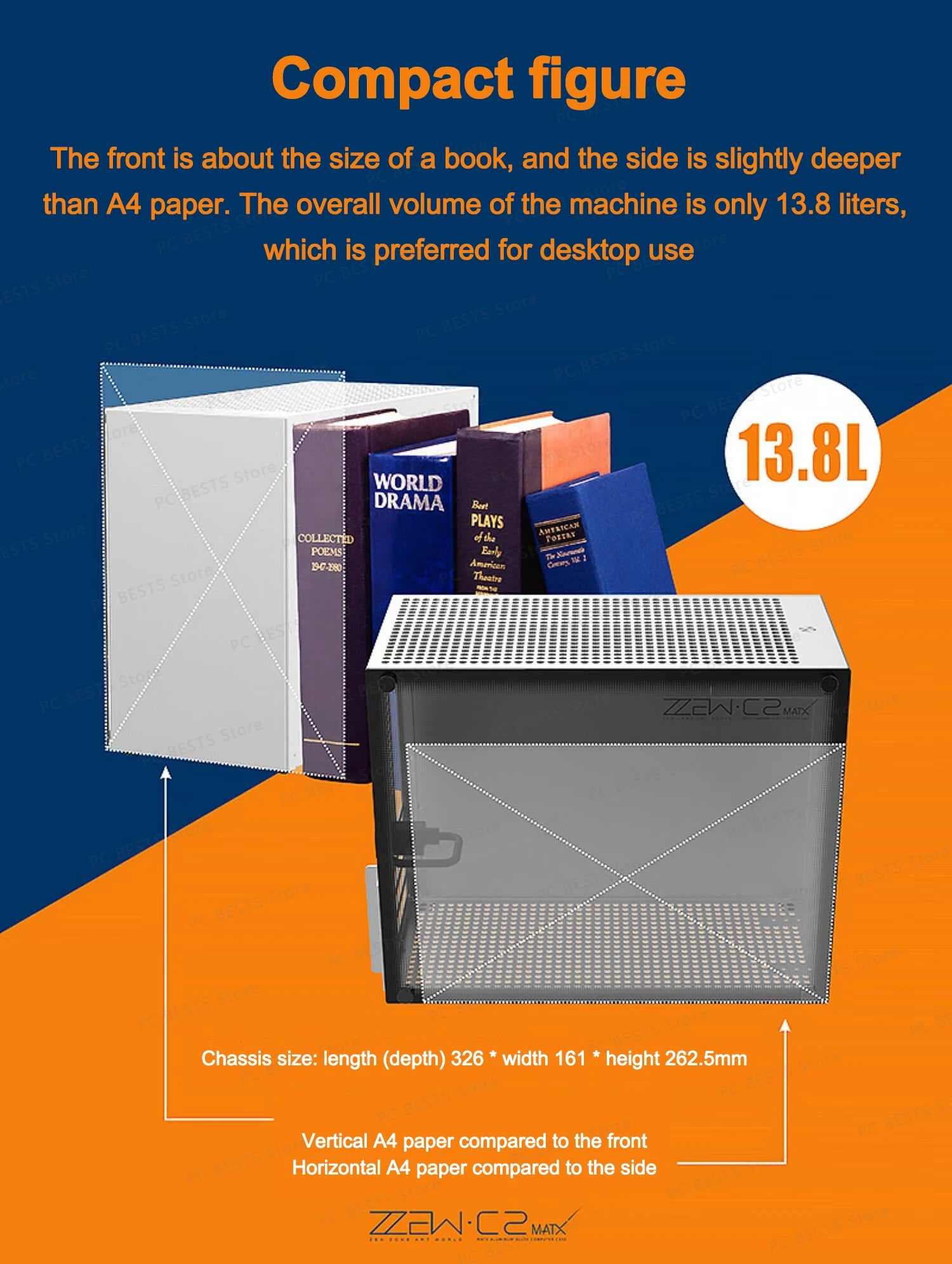

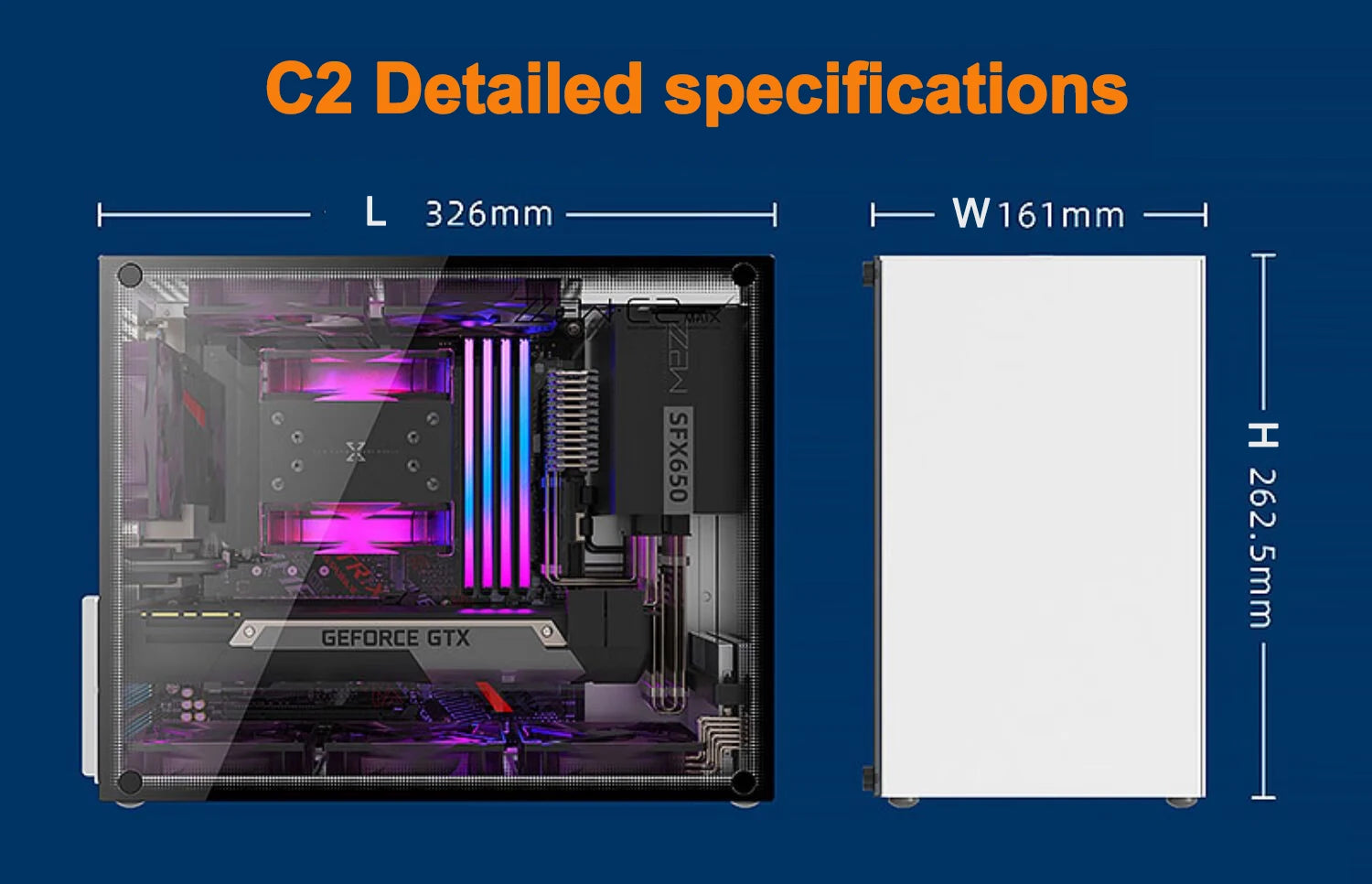

Size: 326 * 161 * 262.5mm
Chassis volume: 13.8 liters
Net weight: 1.7KG
Packaging size: 397 * 215 * 320mm
Gross weight: 2.3KG

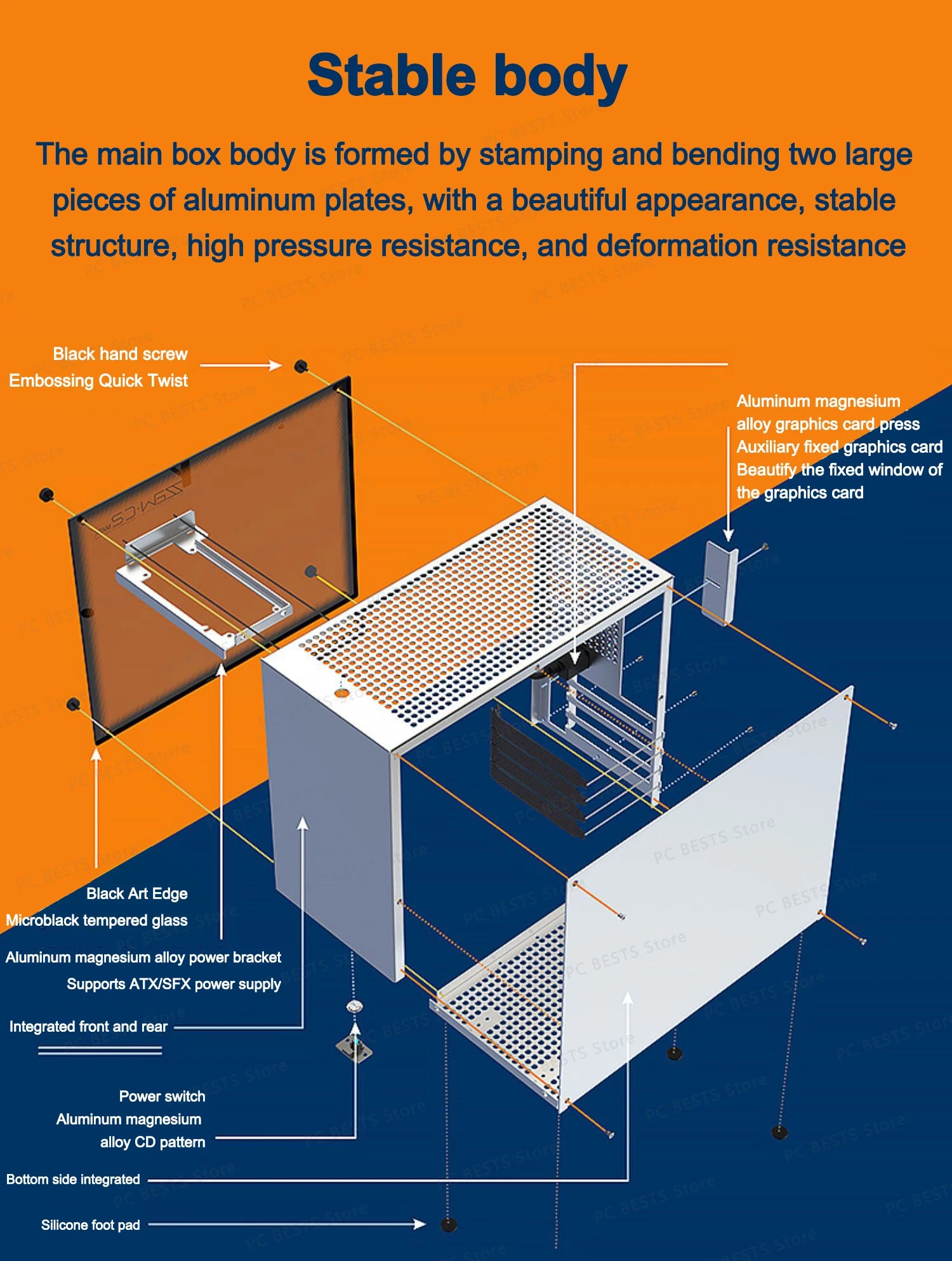

Body material: 1.5mm thick aluminum magnesium alloy plate

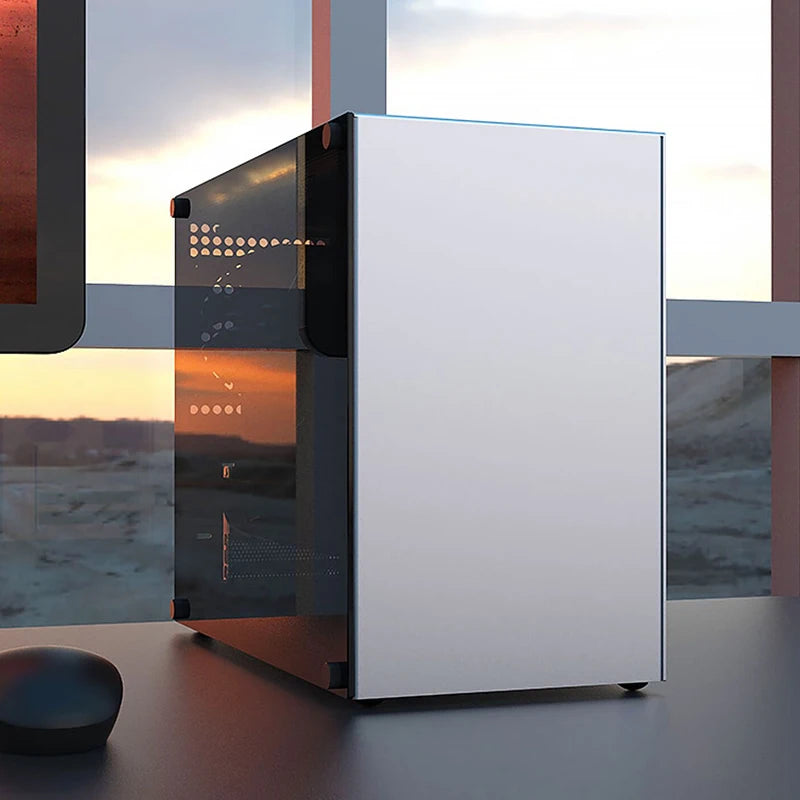

Side panel material: 3.0mm thick tempered glass (light black transparent)
Color: Silver/ White
Front: 1 key with indicator light on/off

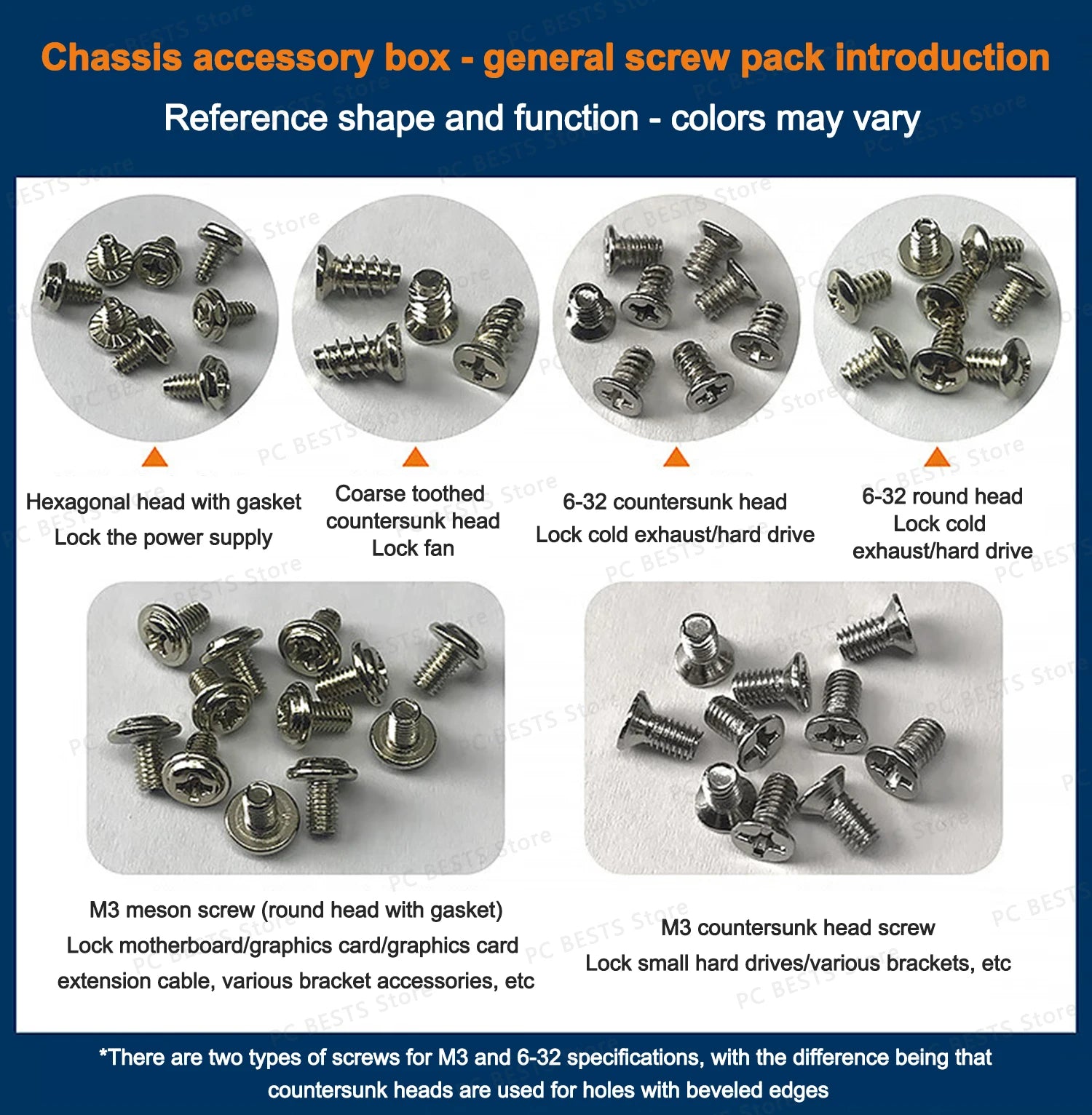

Attachment: accessory box (including screws, etc.)+dual mode power rack * 1
Gift: Dust net * 1

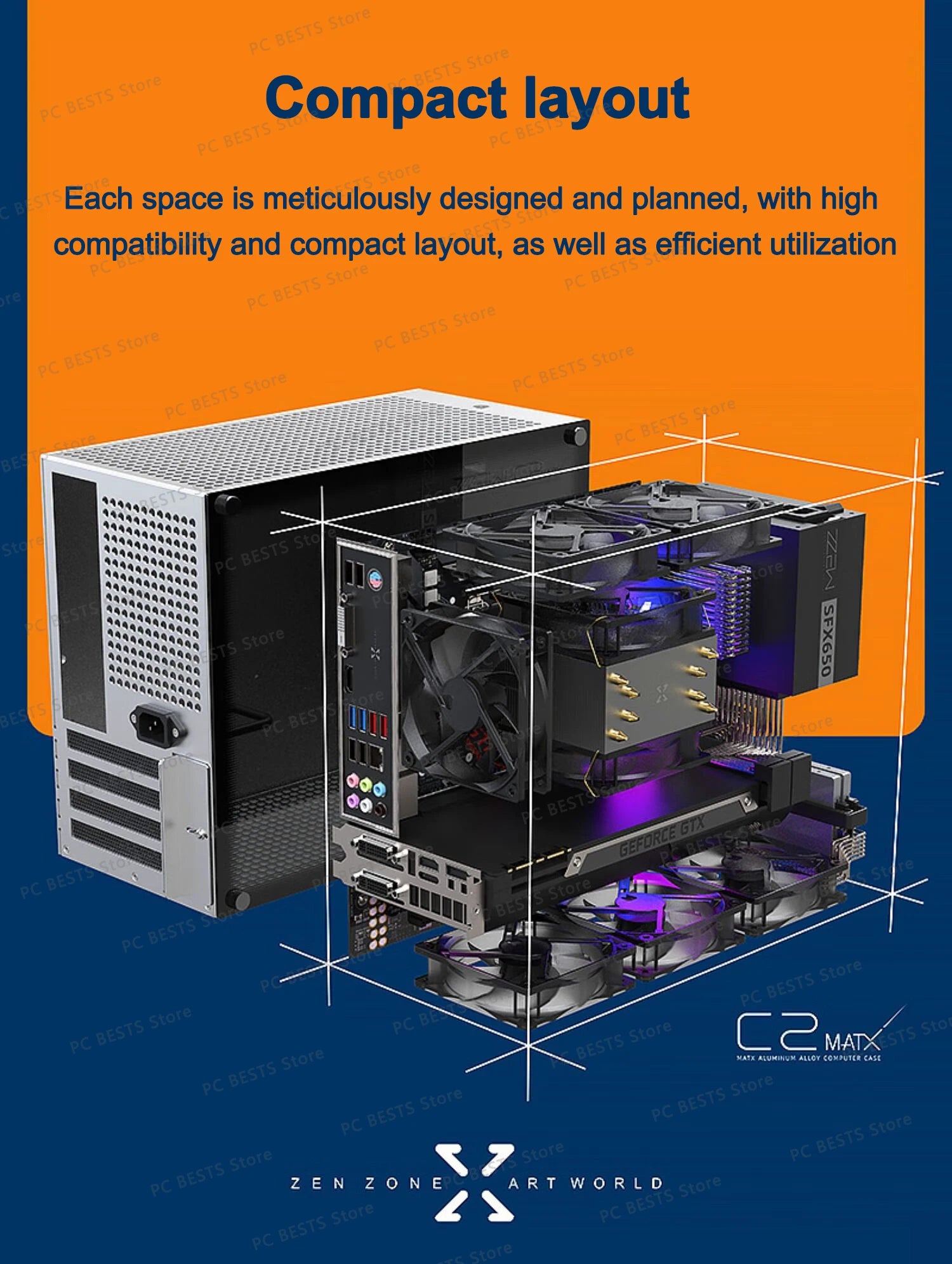

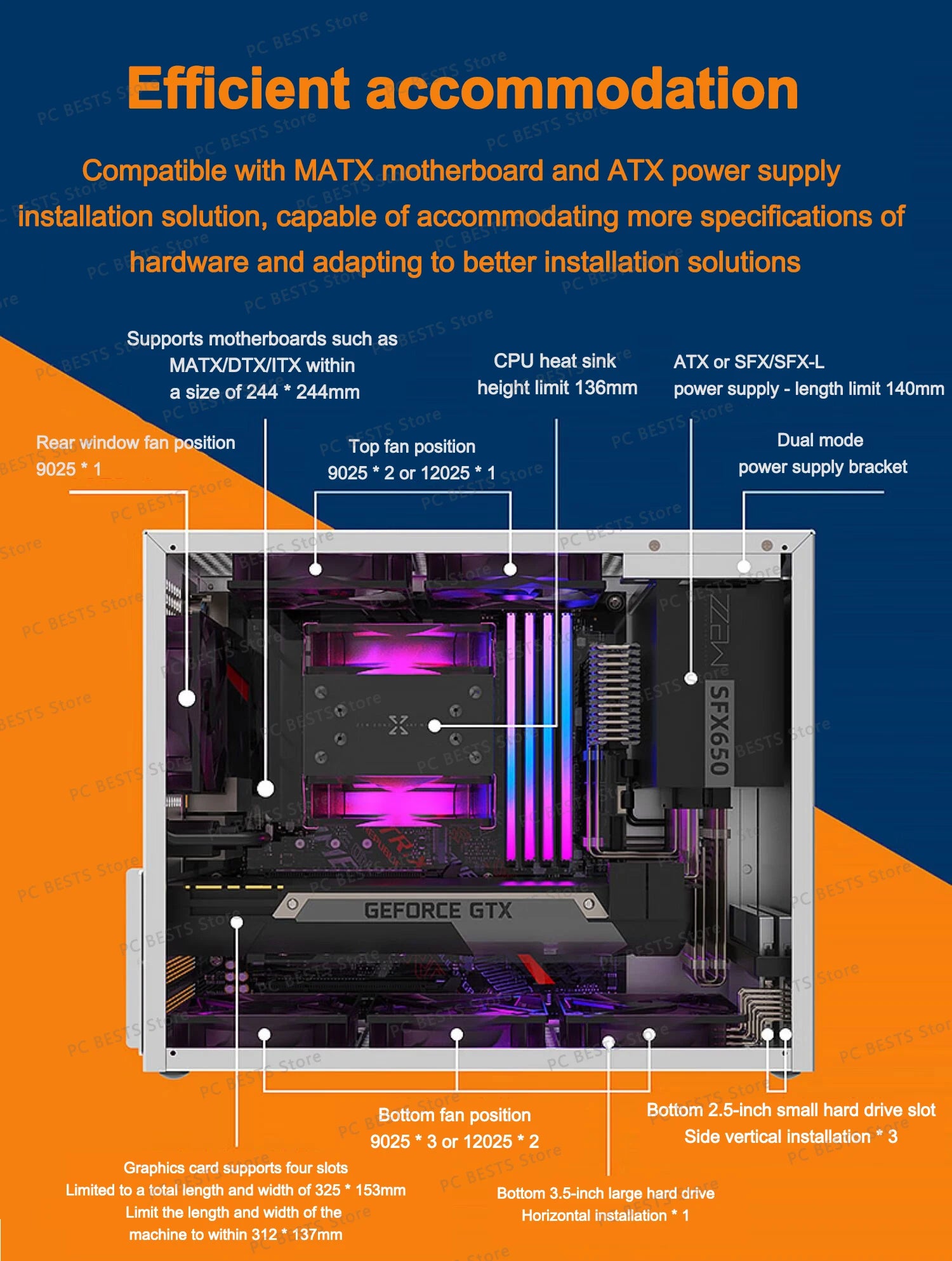

Hardware support detailed parameters:
Motherboard support: MATX, DTX, ITX
Power support: ATX, SFX-L, SFX
Hard drive support: 3.5 * 1 and 2.5 * 3 slots
Graphics card support: total length 325 * total width 153mm * thickness 4 slots
Fan support: 9025 * 6 or 12025 * 3+9025 * 1 CPU
Radiator support: height within 136mm

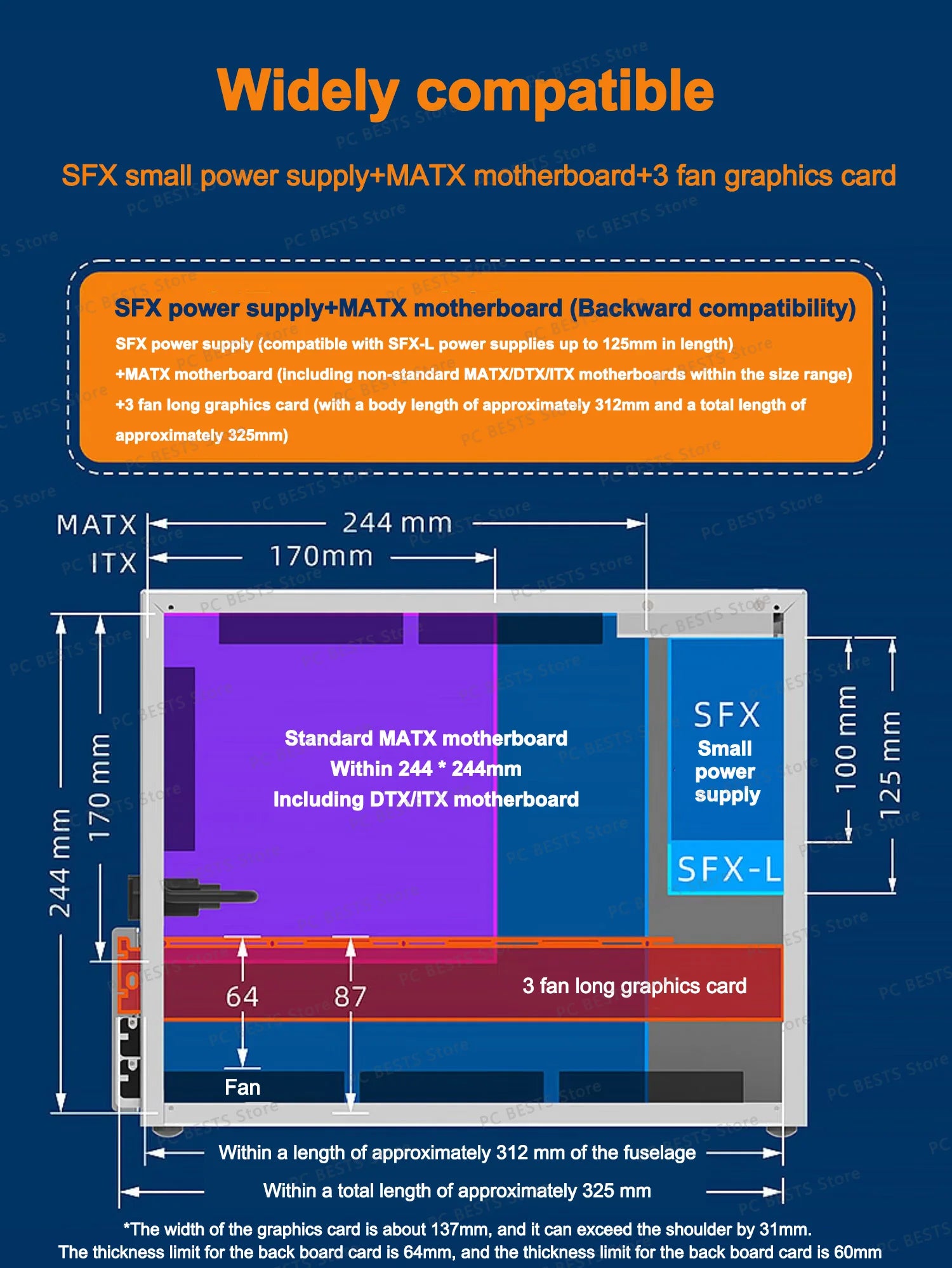

Motherboard:
Supports MATX, DTX, and ITX motherboards

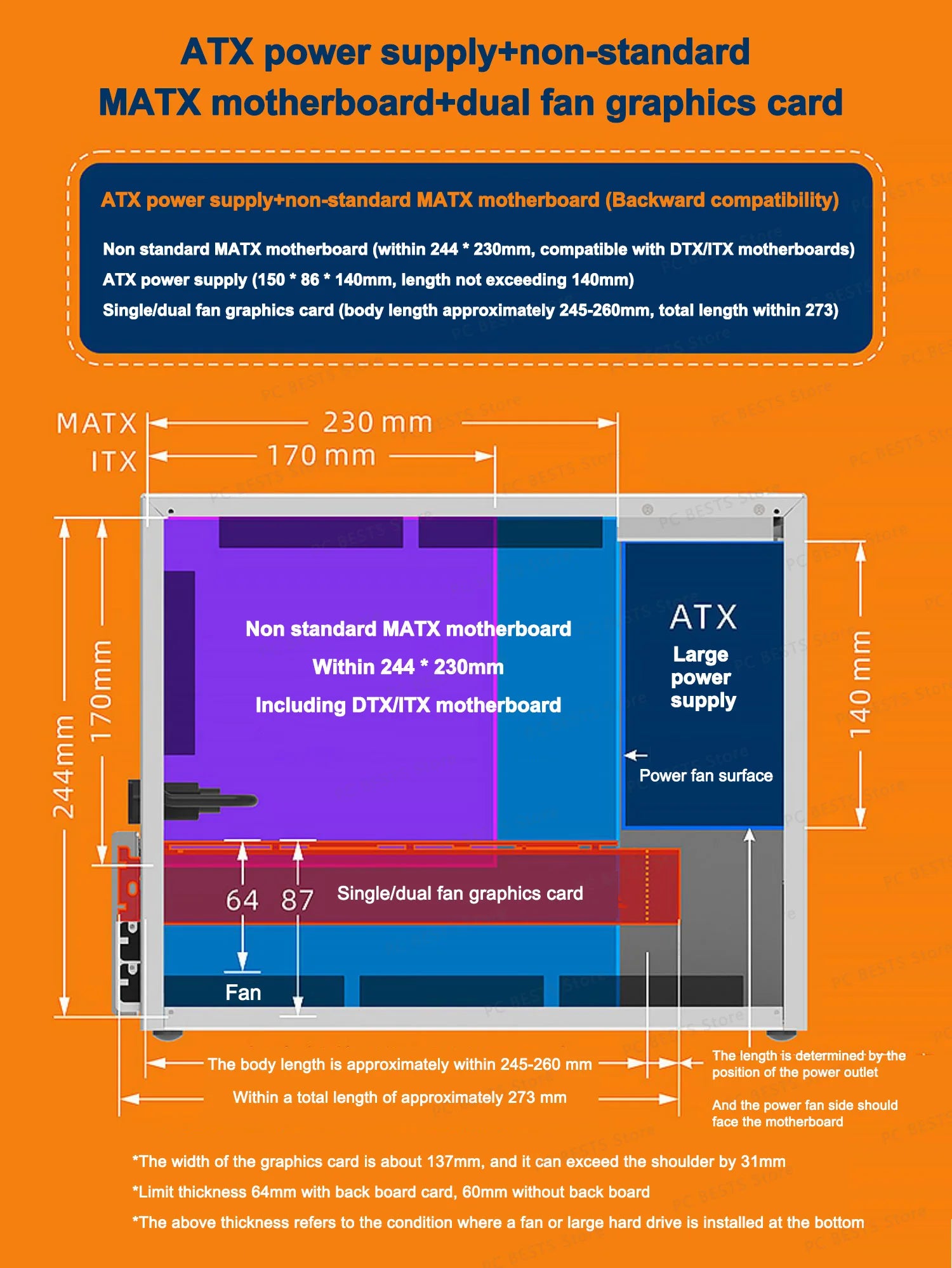

Standard MATX motherboard (244 * 244mm) limited to SFX power supply
Jiubiao MATX motherboard within 244 * 225
(supporting ATX power supply, etc.)
Graphics card:
Supports graphics card body (length 312 * width 137mm) with a thickness of 4 slots. When installing fans and hard drives at the bottom, the graphics card is limited to a thickness of 64mm
Shoulder crossing 31mm (including power supply line)
When using ATX power, it is recommended to limit the length of the graphics card to within 245-260mm

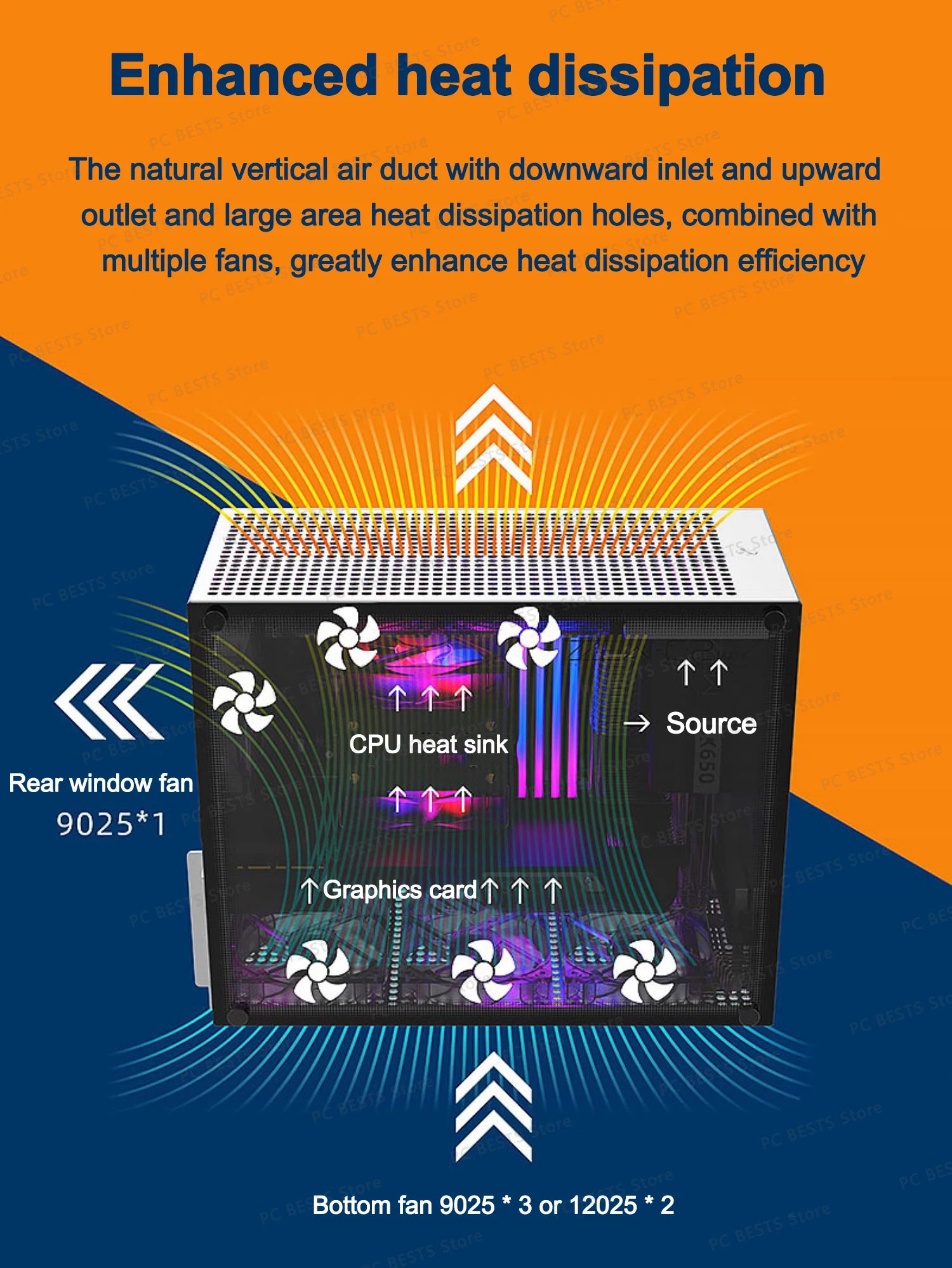

Radiator:
Air cooling - supports 6 x 9025 or 3 x 1205+1 x 9025 fans
Rear window supports 9025 * 1
Top support 9025 * 2 or 12025 * 1
Bottom support 9025 * 3 or 12025 * 2
CPU heat sink height limit 136mm
Power supply:
Supports SFX/SFX-L and ATX power supplies
Built in Extension cord and ATX/SFX dual mode power support
Support standard ATX power supply, size: 150 * 140 * 86mm, power supply length should not exceed 140mm
Hard drive:
The bottom supports both 3.5-inch hard drives * 1 and 2.5-inch hard drives * 3
Or support 3.5 and 2.5 inch hard drives and 12025 fans each * 1
Or support 2.5-inch hard drive * 3 and 12025 fan * 2
Or support 2.5-inch hard drive * 2 and 9025 fan * 3
